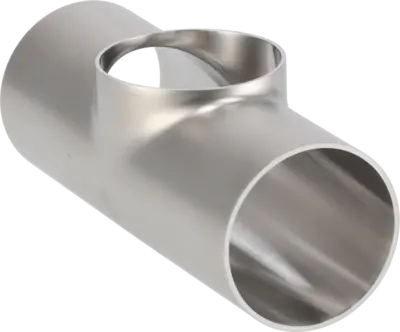

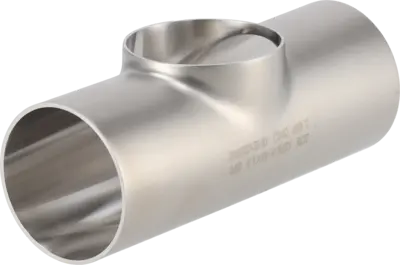

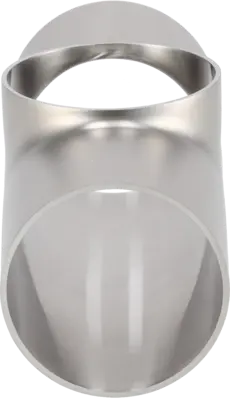

TEE TK DN32 HSF2 1.4307

TEE TK DN32 HSF2 1.4307 - DIN 11852
Manufacturer: Alfa Laval
Product code: 5026
Item number: 9615227507
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:73072390
Delivery time:On request
  • Range: Tees
  • Product Model: DIN EN 10357-A Tees Short EN 10374-A
  • Size: DN32
  • Material: 1.4307 (304L)
  • Finish: HSF2 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Standard: DIN 11852 EN 10374-A
  • Design: Short Tee, TK
  • Item Weight: 0.26
Price:
Login to view price
L1 (mm): 2.17
L2 (mm): 0.77
OD/ID x t: 35/32 x 1.50
OD1/ID1 x t1: 35/32 x 1.50
