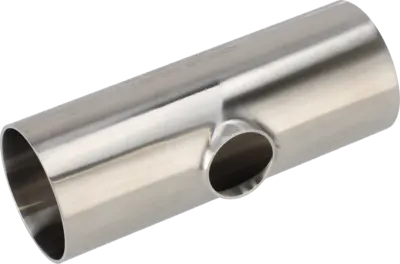

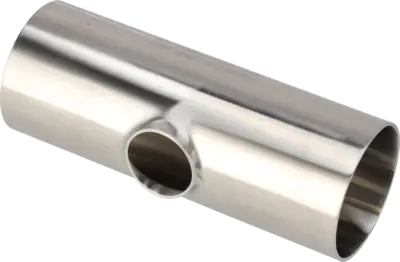

TEE RTK DN100/65 HSF3 1.4404

TEE RTK DN100/65 HSF3 1.4404 - DIN 11852
Manufacturer: Alfa Laval
Product code: 5026
Item number: 9615247249
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:73072390
Delivery time:1-3 days
  • Range: Tees
  • Product Model: DIN EN 10357-A Reducing Tees Short EN 10374-A
  • Size: DN100
  • Second Size: DN65
  • Material: 1.4404 (316L)
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Connection Type: Weld ends
  • Standard: DIN 11852 EN 10374-A
  • Design: Reduced Tee Short, RTK
  • Item Weight: 2.07
Price:
Login to view price
L1 (mm): 3.94
L2 (mm): 2.24
OD/ID x t: 104/100 x 2
OD1/ID1 x t1: 104/100 x 2
OD2/ID2 x t2: 70/66 x 2
