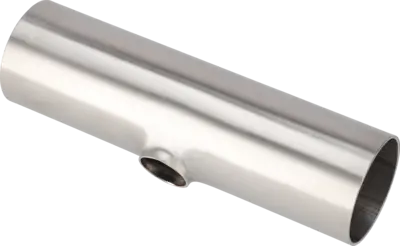

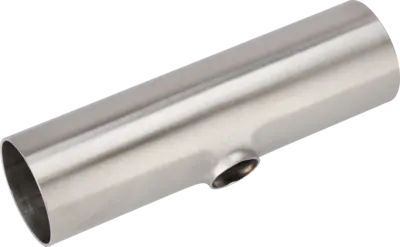

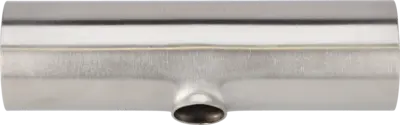

TEE-RED 152.4-101.6-POL/RAW

TEE-RED 152.4-101.6-POL/RAW - 316-BS4825
Manufacturer: Alfa Laval
Product code: 5021
Item number: 9612927715
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:73072390
Delivery time:On request
  • Range: Tees
  • Product Model: BS 4825 Tees Reducing Short
  • Size: 152.4 mm
  • Second Size: 101.6 mm
  • Material: 1.4401 (316)
  • Finish: ID:RAW=0.8/OD:POL=1.0
  • Connection Type: Weld ends
  • Standard: BS 4825
  • Design: Short reducing
  • Item Weight: 7.72
Price:
Login to view price
L1 (mm): 6.06
L2 (mm): 6.14
OD/ID x t: 152.40/148.40 x 2
OD1/ID1 x t1: 152.40/148.40 x 2
OD2/ID2 x t2: 101.60/97.60 x 2
