L2CM-2 1/2-316L-7

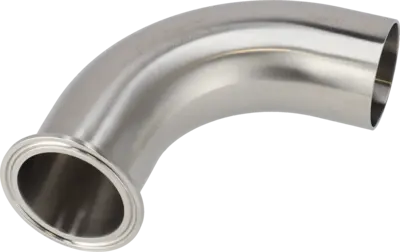

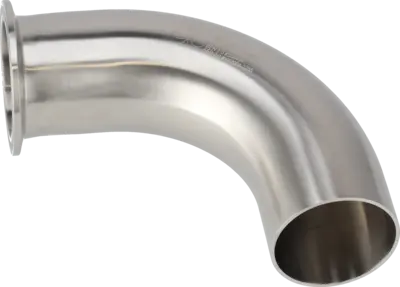

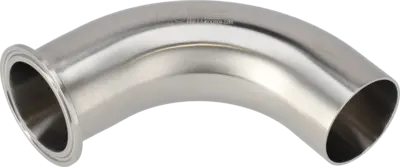

L2CM-2 1/2-316L-7 - 90-TC X WELD, POLISHED ID/OD
Manufacturer: Alfa Laval
Product code: 5009
Item number: 246100
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:7307290090
Delivery time:1-3 days
  • Range: Bends
  • Product Model: Tri-Clover 3A Bends 90
  • Size: 2.5"
  • Material: 316L
  • Finish: #7 (ID=32/OD=32µin)
  • Connection Type: Tri-Clamp and Weld
  • Standard: 3A
  • Design: L2CM
  • Item Weight: 1.43
Price:
Login to view price

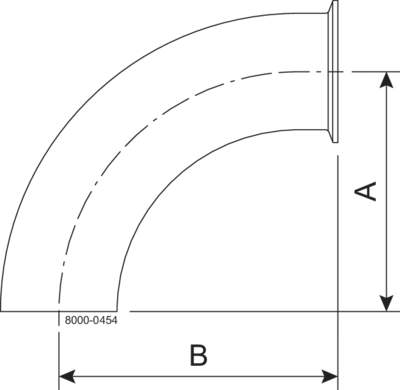

A: 5.19
B: 5.69
OD/ID x t: 63.50/60.20 x 1.65
OD1/ID1 x t1: 63.50/60.20 x 1.65
