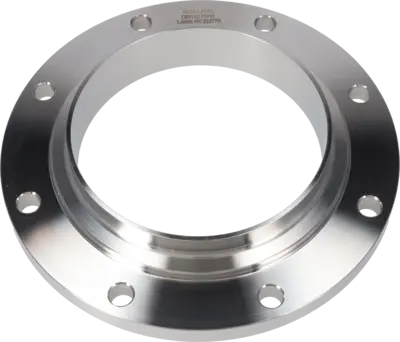

FLANGE PN10 DN150 HSF0 1.4404

FLANGE PN10 DN150 HSF0 1.4404 - FIT TO EN10357-A TUBE COLLAR
Manufacturer: Alfa Laval
Product code: 5044
Item number: 9612492909
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:73072910
Delivery time:1-3 days
  • Range: Flanges
  • Product Model: Fit to DIN Pressure Flanges
  • Size: DN150
  • Material: 1.4404 (316L)
  • Finish: HSF0 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Standard: Fit to EN10357-A
  • Design: Collar PN10
  • Item Weight: 5.34
Price:
Login to view price
A: 7.72
B: 1.18
C: 0.59
OD/ID x t: 154.00/150.00 x 2.00
OD1/ID1 x t1: 154.00/150.00 x 2.00
Pressure class PN (Bar): 10
