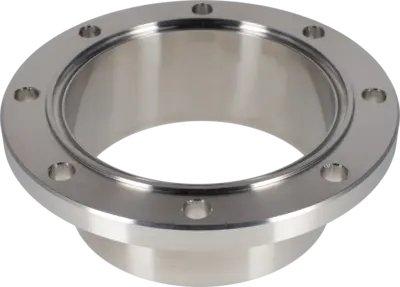

FLANGE NF DN125 H3 1.4404

FLANGE NF DN125 H3 1.4404 - DIN 11864-2
Manufacturer: Alfa Laval
Product code: 5060
Item number: 9615331113
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:73072100
Delivery time:1-3 days
  • Range: Flanges
  • Product Model: DIN EN 10357-A Flange Unions DIN 11864-2
  • Size: DN125
  • Material: 1.4404 (316L)
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: Weld ends
  • Standard: DIN 11864-2
  • Design: NF groove
  • Item Weight: 4.03
Price:
Login to view price
A: 7.20
B: 2.42
F: 6.34
OD/ID x t: 129.00/125.00 x 2.00
