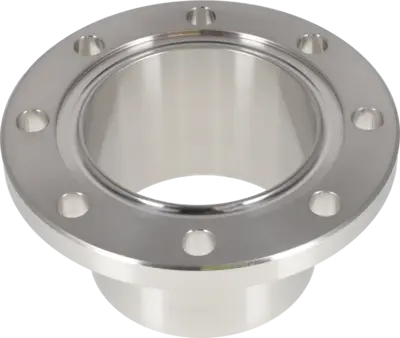

FLANGE BF DN100 H3 1.4404

FLANGE BF DN100 H3 1.4404 - DIN 11864-2
Manufacturer: Alfa Laval
Product code: 5060
Item number: 9613403940
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:73072100
Delivery time:1-3 days
  • Range: Flanges
  • Product Model: DIN EN 10357-A Flange Unions DIN 11864-2
  • Size: DN100
  • Material: 1.4404 (316L)
  • Finish: H3 (ID=0.8/OD=1.0)
  • Connection Type: Weld ends
  • Standard: DIN 11864-2
  • Design: BF collar
  • Item Weight: 3.26
Price:
Login to view price
A: 6.26
B: 2.28
F: 5.39
OD/ID x t: 104.00/100.00 x 2.00
