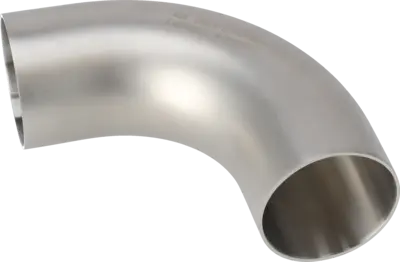

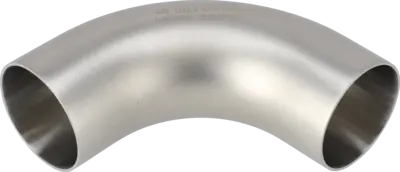

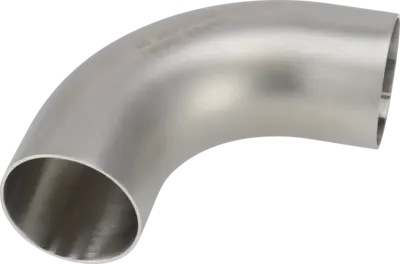

BEND 90 DN15 HSF2 1.4307

BEND 90 DN15 HSF2 1.4307 - FIT TO EN10357-A TUBE
Manufacturer: Alfa Laval
Product code: 5012
Item number: 9615220010
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:73072310
Delivery time:1-3 days
  • Range: Bends
  • Product Model: Fit to DIN Bends 90
  • Size: DN15
  • Material: 1.4307 (304L)
  • Finish: HSF2 (ID=0.8/OD=1.6)
  • Connection Type: Weld ends
  • Standard: Fit to EN10357-A
  • Design: Standard
  • Item Weight: 0.11
Price:
Login to view price
L: 1.85
R (mm): 1.38
OD/ID x t: 19.00/16.00 x 1.50
OD1/ID1 x t1: 19.00/16.00 x 1.50
