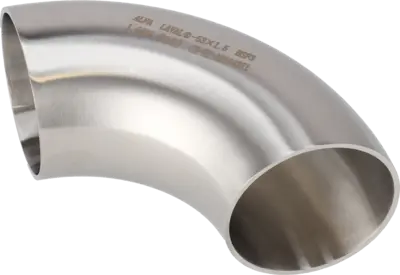

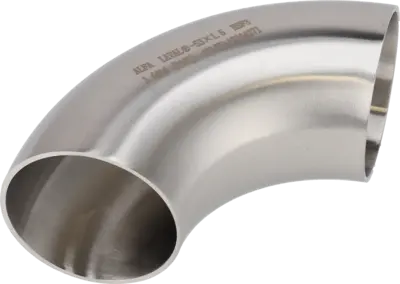

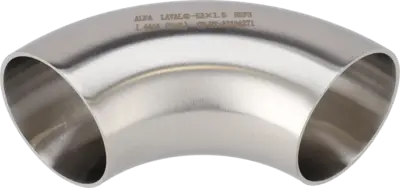

BEND 90 BS DN25 HSF3 1.4307

BEND 90 BS DN25 HSF3 1.4307 - DIN 11852
Manufacturer: Alfa Laval
Product code: 5007
Item number: 9612150561
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:73072310
Delivery time:1-3 days
  • Range: Bends
  • Product Model: DIN EN 10357-A Bends 90 EN 10374-A
  • Size: DN25
  • Material: 1.4307 (304L)
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Connection Type: Weld ends
  • Standard: DIN 11852 EN 10374-A
  • Design: BS
  • Item Weight: 0.18
Price:
Login to view price
L: 1.97
R (mm): 1.97
OD/ID x t: 29.00/26.00 x 1.50
OD1/ID1 x t1: 29.00/26.00 x 1.50
