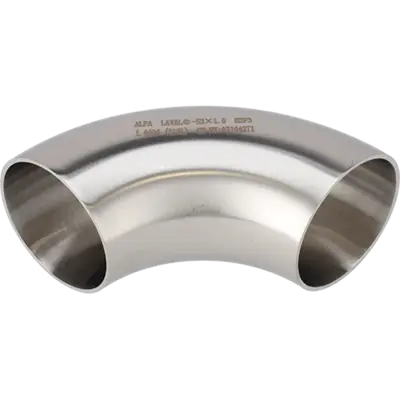

BEND 90 BS 63.5 HSF3 1.4307

BEND 90 BS 63.5 HSF3 1.4307 - ISO EN 10374-D SHORT-1.5XD
Manufacturer: Alfa Laval
Product code: 5004
Item number: 8010035642
In stock:
The green marker indicates that the product is typically in stock. The yellow marker indicates that the product typically has a little longer lead time
HS Code:73072300
Delivery time:1-3 days
  • Range: Bends
  • Product Model: ISO EN 10357-D Bends 90
  • Size: 63.5 mm
  • Material: 1.4307 (304L)
  • Finish: HSF3 (ID=0.8/OD=0.8)
  • Connection Type: Welding ends
  • Standard: ISO 2037 EN 10357-D
  • Design: BS Short 1.5XD
  • Item Weight: 0.82
Price:
Login to view price
L: 3.75
R (mm): 3.75
OD/ID x t: 63.5/60.3 x 1.6
